SHalloduct
Engineered Frost Protection for Shallow Water Service Installations
SHalloduct provides an effective solution for protecting water pipes where standard burial depths cannot be achieved.
Whether navigating over rock formations, foundations, tree roots, or other obstacles, SHalloduct ensures your water pipes remain insulated and safeguarded against frost. Designed for both standard PE and barrier pipes of 25mm or 32mm diameter, it complies with and exceeds BS5422 and Water Regulation (4) standards, even under extreme weather conditions.
NB SHalloduct is the insulation that can be fitted inside a 94mm OD twin wall pipe (supplied by others).
Features & benefits
Versatile Installation
Protects water pipes where standard installation depths (750mm to 1350mm) are not possible - including over rock, foundations, ditches, or tree roots.
Standards Compliant
Designed to not only meet but exceed BS5422 and Water Regulation (4) requirements for frost protection.
Simple to Assemble

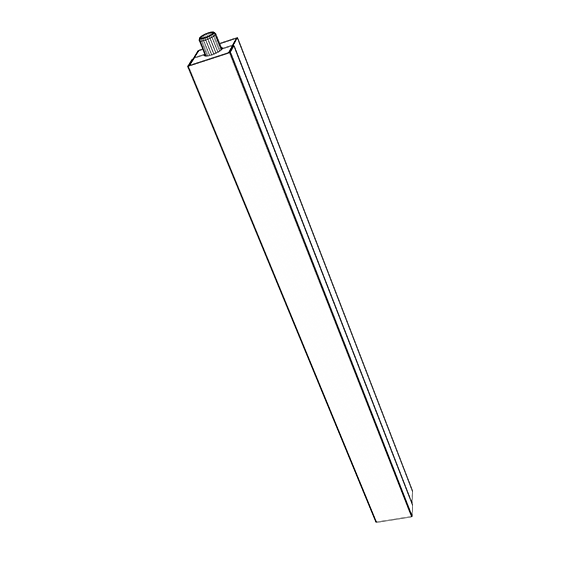

Supplied as two half-shells that can be easily taped together and inserted into a 94mm twin-wall pipe for quick installation.
Flexible Application
Supports installations across challenging ground conditions without compromising frost protection.
Built for Reliability
Delivers consistent, long-term protection in both typical and extreme environmental conditions.
Time and Labour Efficiency
Reduces on-site installation time, supporting faster project delivery and efficient resource use.
Specifications
-
90 mm diameter in 2 half round sections x 840 mm long.
-
Any pipe material or diameter up to 32mm OD. Butt joins to adjacent section for longer runs.
-
Not applicable.
-
Supplied by others.
-
Graphite infused polystyrene at 18gm/litre. Thermal conductivity 0.025 W/mK. Water absorption >0.1% by volume.
Guides & resources
Everything you need to install and use the SHalloduct.
